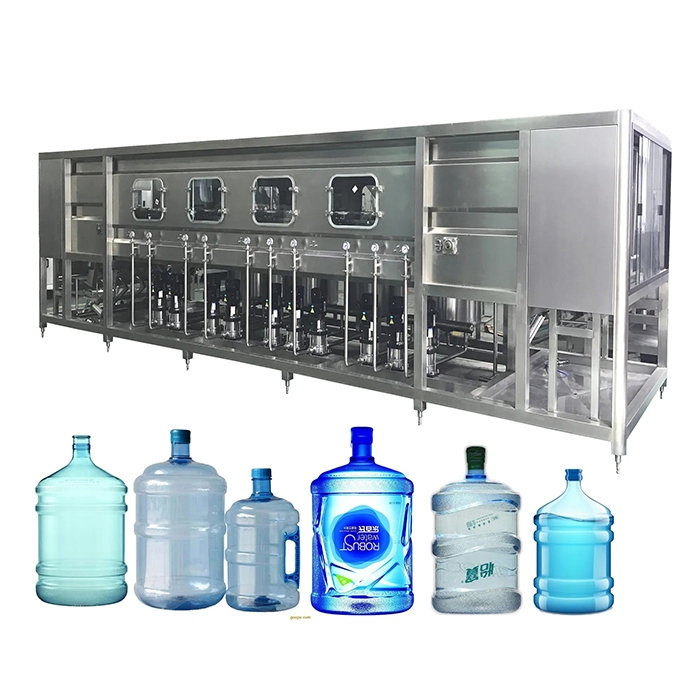

Maquinaria de llenado de agua de botella de barril de 5 galones fabricada en China

Máquina automática de llenado de agua potable de 5 galones

1, It is controlled by PLC and made of SUS304.

2, It integrates bottle washer, filler and sealer into one unit.

3, In order to achieve the purpose of washing and sterilizing ,washing machine use multi-washing liquid spray and-thimerosal soray, this merosal can be used circularly.

4, The sealer can seal barrel caps automatically. This line equips with water spraying device in order to ensure those caps sterile and clean, also this line can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging.

5, It is equipped with automatic trouble protected device.

Nuestros servicios

---

1, The warranty time is one year. Within warranty period,any product broken or damage, we will offer the repair service for free or replace for free.

2, Beside the warranty days, we continue to provide life-long maintenance services.

3, We provide the technical support, solve the technical problems.And our engineers available to service machinery overseas.

Servicio al cliente por favor contáctenos!

Detalles Rápidos

---

Tipo: máquina de llenado
Estado: Nuevo
Aplicación: bebidas
Tipo de embalaje: barril
Material de embalaje: plástico
Grado automático: automático
Tipo conducido: eléctrico
Voltaje: 380V / 50HZ
Poder: 3KW
Lugar de origen: Shanghai, China (continental)
Nombre de la marca: NPACK
Peso: 7T
Servicio postventa proporcionado: ingenieros disponibles para dar servicio a maquinaria en el extranjero
Nombre: maquinaria de llenado de agua de barril de 5 galones
Garantía: un año
Material: grado alimenticio SUS304
Función: lavado de botellas, llenado, tapado

---

5 gallon barrel bottle water filling machinery is a specialized equipment designed to fill 5-gallon (19-liter) bottles with drinking water. This type of machinery is commonly used in the bottled water industry and other related industries where large quantities of drinking water are needed.

The machinery consists of several components, including a bottle washing station, filling station, and capping station. The bottle washing station uses a high-pressure spray to clean and sanitize the bottles before filling. The filling station accurately dispenses the water into the bottles, while the capping station seals the bottles with a screw-on cap.

The machinery also includes a conveyor system that transports the bottles through each stage of the filling process. The system is designed to handle a large number of bottles efficiently and with minimal manual intervention.

The machinery is fully automated, with a control panel that allows operators to adjust the filling speed and monitor the machine's performance. The machine can fill hundreds of bottles per hour, making it ideal for large-scale operations.

The 5 gallon barrel bottle water filling machinery is also designed for easy cleaning and maintenance. All components are easily accessible and can be disassembled quickly for cleaning.

Overall, 5 gallon barrel bottle water filling machinery is an essential piece of equipment for the bottled water industry. It ensures that the water is accurately measured, packaged, and protected, maintaining the quality and safety of the product.
